| Batch size max. (H2O) (l) |
Process pressure (max.) (bar) |
Motor power, standard (kW) |
Tip speed (m/s) |
参数列表 | 图纸 | |
|---|---|---|---|---|---|---|
| UTE 60 | 70 | 10 | 1.85 | 23 |  |
 |
| UTE 115 | 400 | 16 | 2.5 | 15 | |
 |
| UTE 150 | 750 | 16 | 5.5 | 21 | |
 |
| UTE 220 | 1200 | 16 | 11 | 15 | |
 |
| UTE 280 | 2500 | 16 | 22 | 20 | |
 |

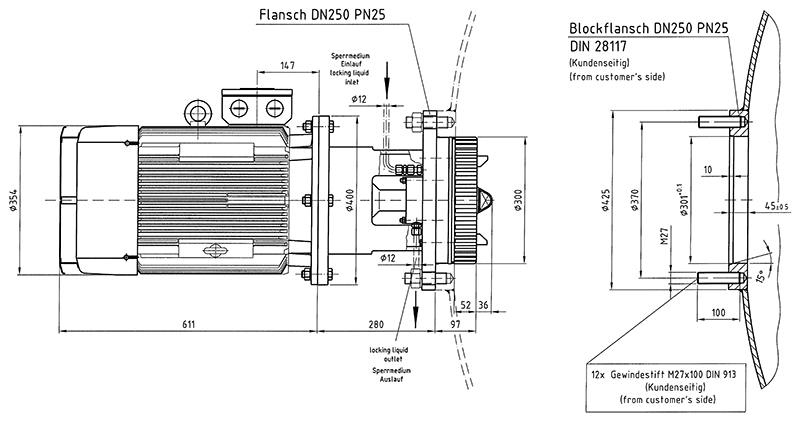

| UTE 300 | 4000 | 16 | 30 | 21 | |
 |
| UTE 350 | 8000 | 16 | 55 | 26 | |
 |

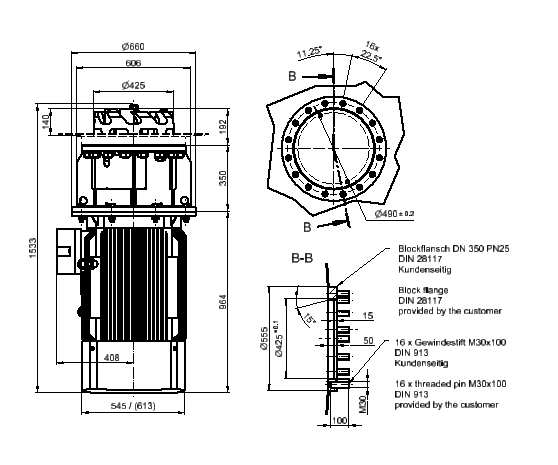

| UTE 400 | 12000 | 16 | 132 | |
 |
|
| UTE 450 | 20000 | 16 | 160 | 31 | |
 |
| UTE 600 | 40000 | 16 | 250 | |
