| Flow rate (max.) (l/h) |
Motor power max. (kW) |
Motor power min. (kW) |
Rotor rotational speed (rpm) |
参数列表 | 图纸 | |
|---|---|---|---|---|---|---|
| ULTRA-TURRAX UTL 1000/10 | 4800 | 7.5 | 5.5 | 3000 |  |
 |

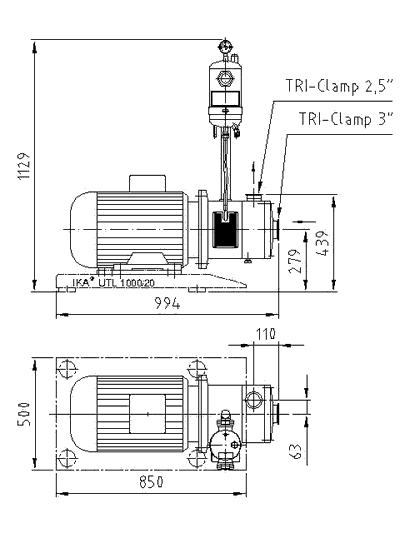

| ULTRA-TURRAX UTL 1000/20 | 17000 | 30 | 22 | 3000 | |
 |

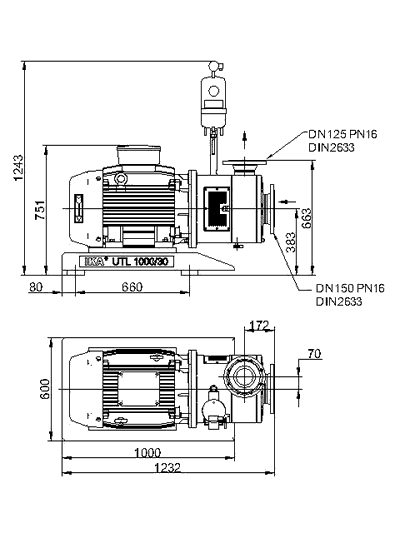

| ULTRA-TURRAX UTL 1000/30 | 35000 | 45 | 37 | 1500 | |
 |

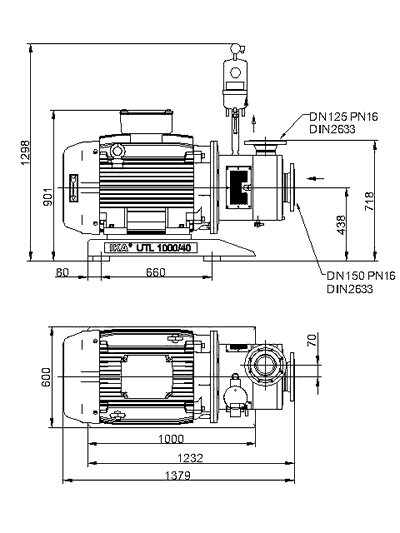

| ULTRA-TURRAX UTL 1000/40 | 65000 | 75 | 55 | 1500 | |
 |

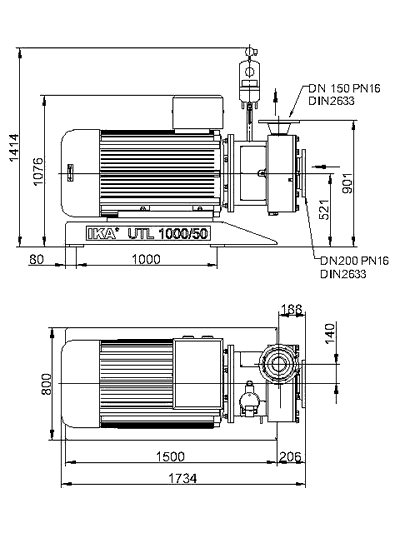

| ULTRA-TURRAX UTL 1000/50 | 125000 | 158 | 110 | 1000 | |
 |
